Autonomous Floor Grinder

HTG-1000 GE Battery Automatic Robot Grinder

The HTG-1000 is a battery-powered autonomous floor grinder designed for large-scale industrial projects. Powered by new-energy battery technology, it delivers high-precision grinding with intelligent navigation and fleet operation capability.
Instructions pdf
product descriptionFEATURESMachine parametersrelated productsVideo

product description

The HTG-1000 is a battery-powered autonomous floor grinder designed for large-scale industrial projects. Powered by a 560V battery with 4-hour runtime, it features a 22kW grinding motor and 955mm working width for efficient surface preparation and polishing.

‌✓ 560V Battery with 4-Hour Runtime
‌✓ 22kW Grinding Motor / 30 HP
‌✓ 955mm Working Width

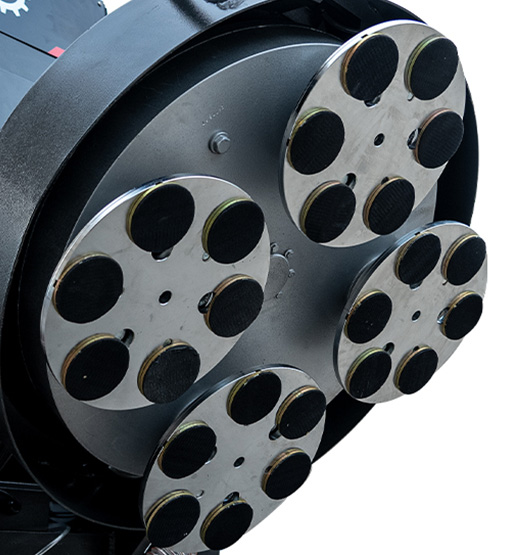

‌✓ 4*370mm Grinding Discs
‌✓ 8th Generation Gearbox Technology
‌✓ 1000m³/h Vacuum Flow
‌✓ 3160KG Heavy-Duty Construction
‌✓ 4280*1050*2150mm Dimensions

FEATURES

Discover all features and learn more about the benefits.

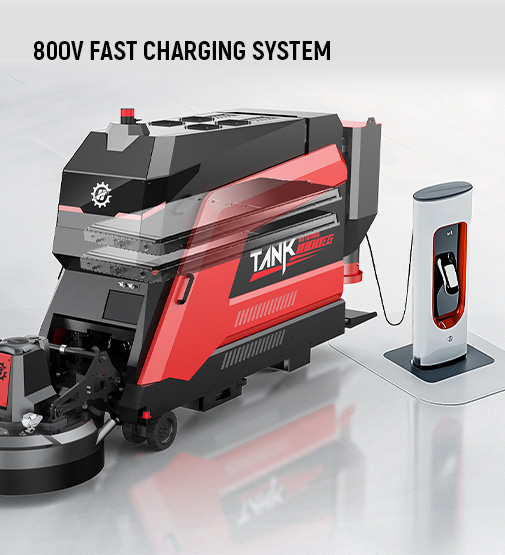

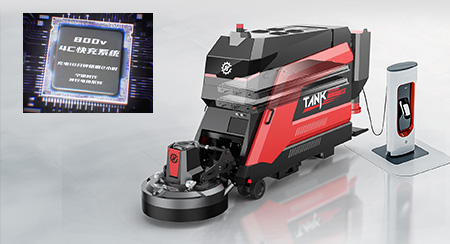

800V Fast Charging System

800V fast charging system reduces downtime and extends runtime, enabling continuous operation on large-scale industrial projects.

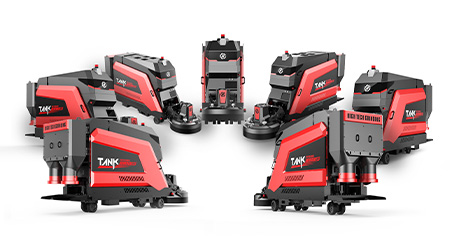

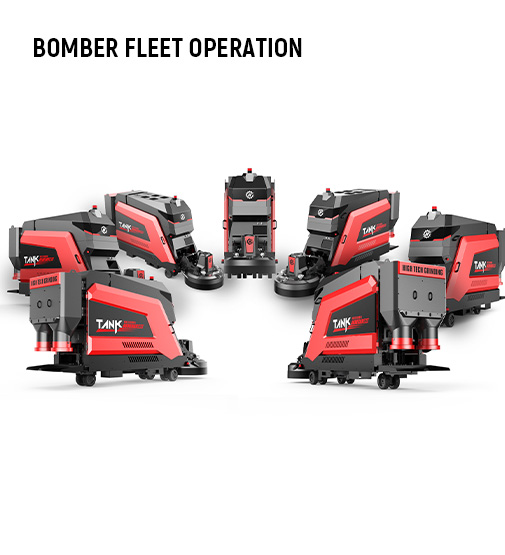

Bomber Fleet Operation

Supports up to 7 synchronized devices managed by 1-2 operators for maximum coverage and efficiency.

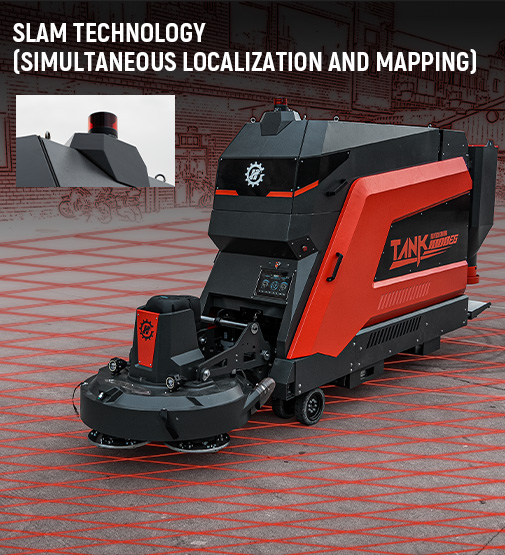

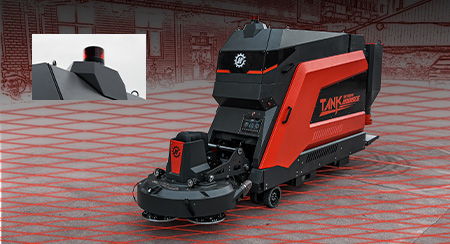

SLAM Technology (Simultaneous Localization and Mapping)

TANK1000EG uses SLAM laser navigation for autonomous mapping, path planning, and obstacle avoidance.

feature overview (8)

✓ 560V Battery with 4-Hour Runtime

✓ 22kW Grinding Motor / 30 HP

✓ 955mm Working Width

✓ 4*370mm Grinding Discs

✓ 8th Generation Gearbox Technology

✓ 1000m³/h Vacuum Flow

✓ 3160KG Heavy-Duty Construction

✓ 4280*1050*2150mm Dimensions

Machine parameters

ALL PRODUCTS SPECIFICATION HTG-1000
HTG-1000 Battery Robot Grinder
ENGINE
Engine Power (As rated by the engine manufacturer) 22 KW / 30 HP
MOTOR
Power source Battery
Rated voltage 560 V
Rated current 50 A
Battery Life 4 H
Inverter horsepower 22 KW / 30 HP
EQUIPMENT
Grinding width 955 mm
Number of grinding discs 4
Grinding disc diameter 370 mm
Grinding Motor Power 22 KW / 30 HP
Walking Motor Power 3*3 KW
Steering Motor 3*1 KW
Air Compressor Power 1.5 KW
Fan Power 7.5 KW
Hydraulic Station Power 4 KW
Vacuum Flow 1000 m³/h
Water Tank 2*10 L
DIMENSIONS
Product size length 4280 mm
Product size width 1050 mm
Product size height 2150 mm
Weight (complete product w/o side packed articles) 3160 KG
