Dust Extractor

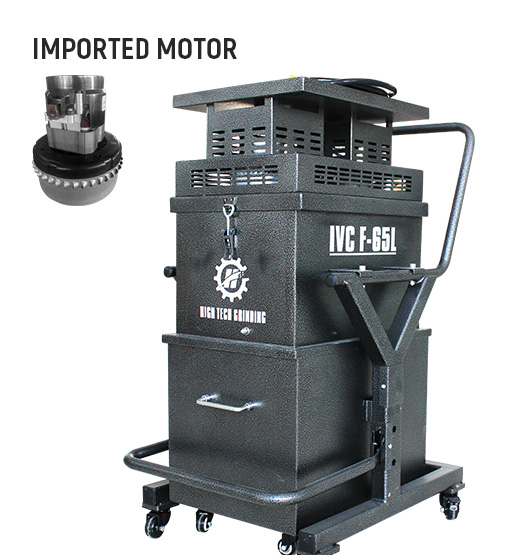

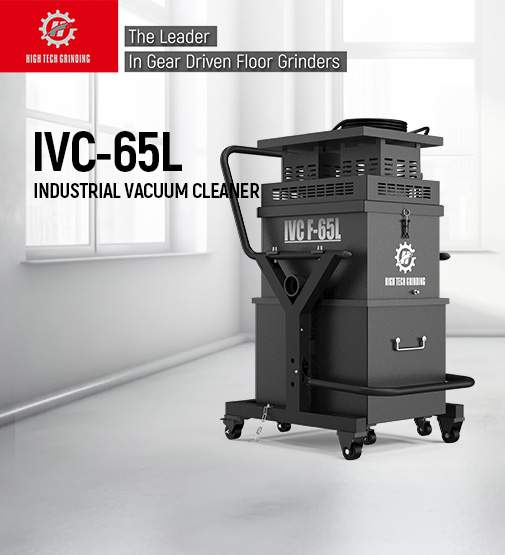

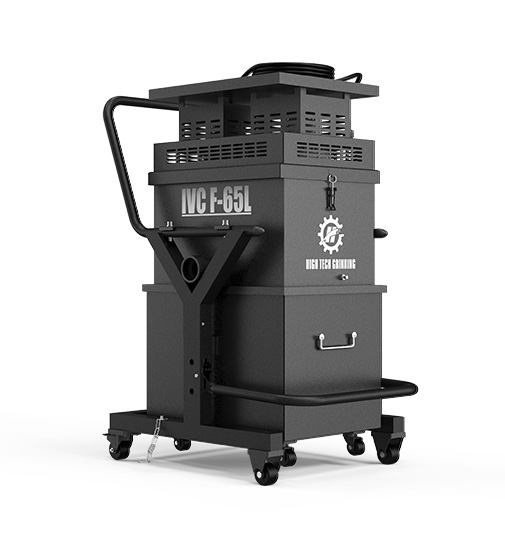

HTG F65 Dust Extractor
The HTG F65 is a premium industrial dust extractor designed for small and medium-sized grinders. Powered by a 2.2kW motor with 220V/110V options, it delivers 385m³/h airflow and 22kPa vacuum pressure. Featuring HEPA H13 filtration with manual shake-back cleaning, it is a good partner for industrial and commercial areas, reducing dust in the air for a friendly environment.
2.2kW Power / 3HP
385m³/h Airflow / 22kPa Vacuum Pressure
HEPA H13 Filtration with Manual Shake-Back Cleaning
65L Large Capacity Dust Collecting Barrel
760×565×983mm / 68kg
1.5m² HEPA H13 Filter Area
50mm Hose / 2in
Recommended for Small to Medium Grinders
product description
The HTG F65 (IVC-F65L) is a premium industrial dust extractor designed for small and medium-sized grinders. Powered by a 2.2kW motor with 220V/110V options, it delivers 385m³/h airflow and 22kPa vacuum pressure. Featuring HEPA H13 filtration with manual shake-back cleaning and a 65L collecting barrel, it provides efficient dust control. The compact design (760×565×983mm) and 68kg weight make it easy to transport and operate. Equipped with a 1.5m² HEPA H13 filter and 50mm hose, it is a reliable solution for maintaining a clean and safe working environment in industrial and commercial areas.
FEATURES
Discover all features and learn more about the benefits.
-

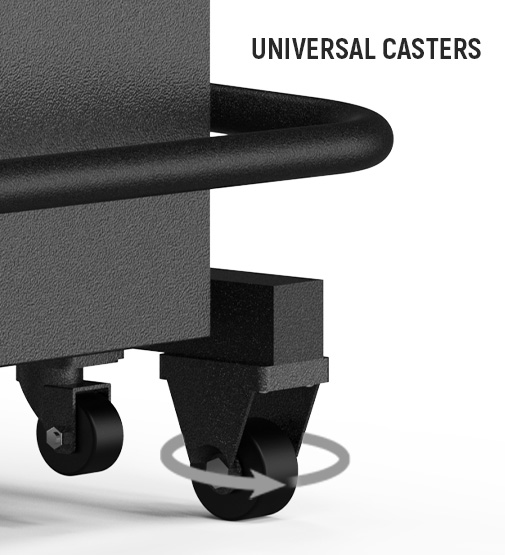

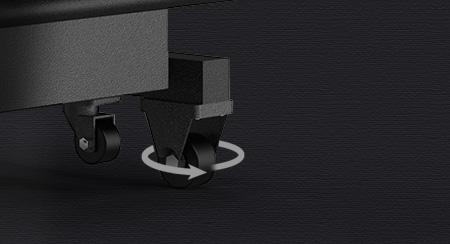

Universal Casters

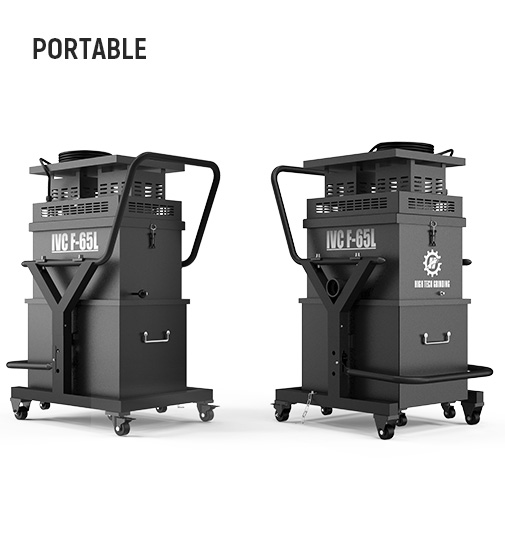

Universal casters provide smooth mobility across jobsites for effortless transport and positioning.
-
-

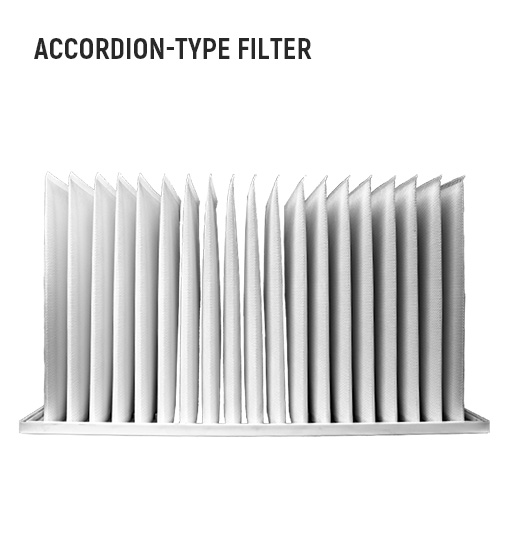

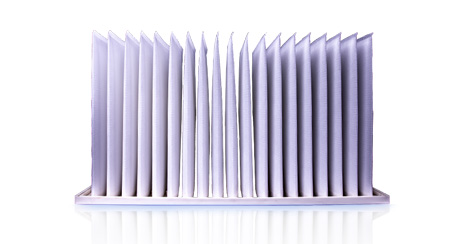

Accordion-Type Filter
Accordion-type filter maximizes filtration area for efficient dust capture and easy maintenance.
-
-
Steel Body & Metal Frame
Steel body and metal frame construction ensure long-term durability and reliable performance.
-
-

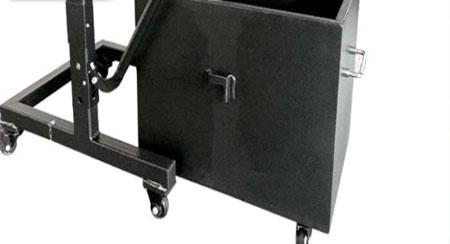

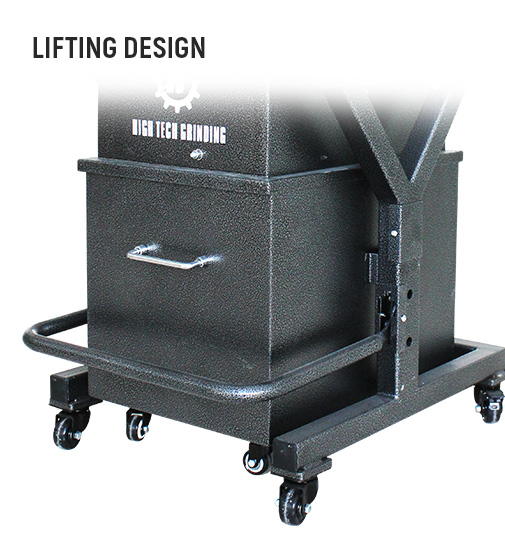

Dust Box

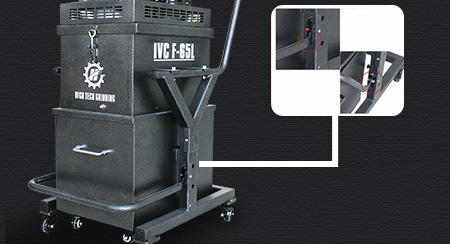

65L large capacity dust collecting barrel with patented lifting structure design for quick and easy dust disposal.
-
feature overview (8)
2.2kW Power / 3HP
385m³/h Airflow / 22kPa Vacuum Pressure
HEPA H13 Filtration with Manual Shake-Back Cleaning
65L Large Capacity Dust Collecting Barrel
1.5m² HEPA H13 Filter Area
760×565×983mm / 68kg
50mm Hose / 2in
Recommended for Small to Medium Grinders
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG F65 |
| HTG F65 Dust Extractor (IVC-F65L) | |
| ENGINE | |
| Engine Power | 2.2 KW / 3 HP |
| MOTOR | |
| Power source | Corded |
| Rated input power | 2.2 KW / 3 HP |
| Phases | 1 P |
| Voltage | 220V / 110V |
| Frequency | 50/60Hz |
| EQUIPMENT | |
| Vacuum | 22 Kpa / 220 Mbar |
| Maximum Flow | 385 m³/h |
| Filtration Level | 1.5m² HEPA H13 |
| Filter Cleaning | Shaking Back and Forth (Manual) |
| Hose | 50mm / 2in |
| Collection | Barrel |
| DIMENSIONS | |
| Product size length | 760mm / 30in |
| Product size width | 565mm / 22.2in |
| Product size height | 983mm / 38.7in |
| Weight (complete product w/o side packed articles) | 68kg / 150 lbs |
