Dust Extractor

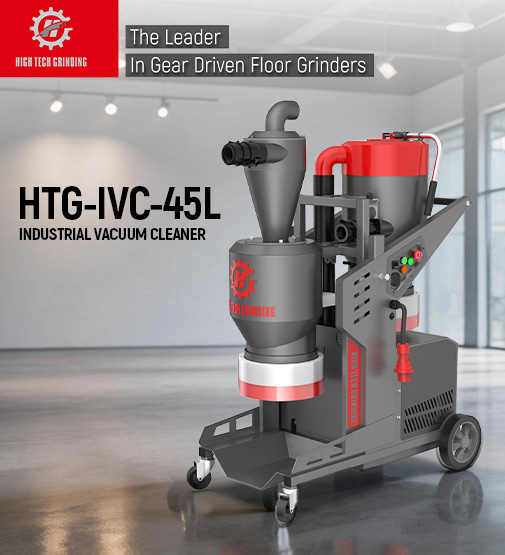

HTG-45L Dust Extractor
The HTG-45L is an industrial-grade dust collector designed for large-scale industrial grinding applications. Powered by a 5.5kW motor with 380V/220V 3-phase options, it delivers 600m³/h airflow and 35kPa suction. Featuring a two-stage filtration system with cyclone separation and 2.8m² HEPA H13 filter with automatic pulse cleaning, it ensures continuous operation and efficient dust control.
5.5kW Motor / 600m³/h Airflow / 35kPa Suction
Two-Stage Filtration: Cyclone + 2.8m² HEPA H13
Automatic Pulse Cleaning for Continuous Operation
Liftable Barrel Design with 30cm Lifting Space
Integrated Central Control Panel
Continuous Dust Bag for Fast, Dust-Free Bagging
1250×711×1930mm / 223.5kg
product description
The HTG-45L is an industrial-grade dust collector designed for large-scale industrial grinding applications. Powered by a 5.5kW motor with 380V/220V 3-phase options, it delivers 600m³/h airflow and 35kPa suction. Featuring a two-stage filtration system with cyclone separation and 2.8m² HEPA H13 filter with automatic pulse cleaning, it ensures continuous operation and efficient dust control. The liftable barrel design with 30cm lifting space saves transportation space, while the integrated central control panel makes operation easy. Equipped with a continuous dust bag for fast, dust-free bagging.
FEATURES
Discover all features and learn more about the benefits.
-

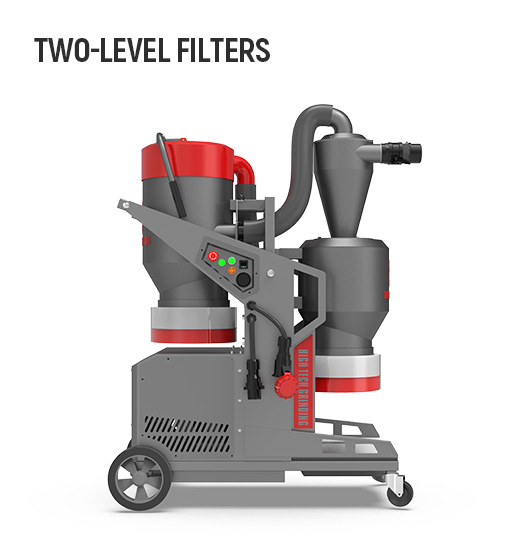

Two-Stage Filtration System
Features cyclone separation + 2.8m² HEPA H13 filtration for superior dust capture, ensuring clean air output and efficient dust control.
-
-

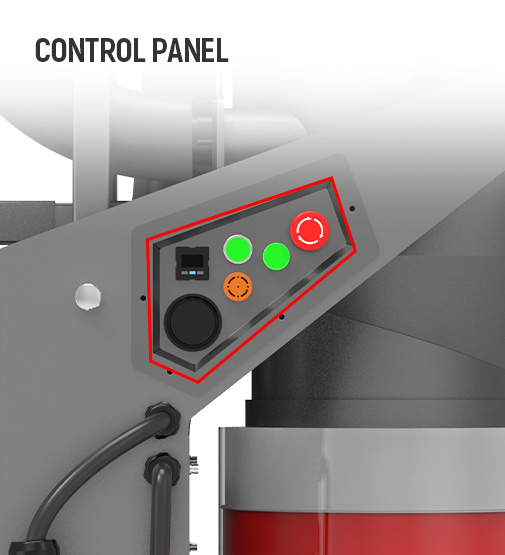

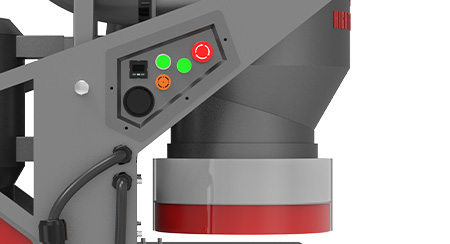

Integrated Control Panel
Central control panel offers simple, user-friendly operation for easy vacuum system monitoring and control.
-
-

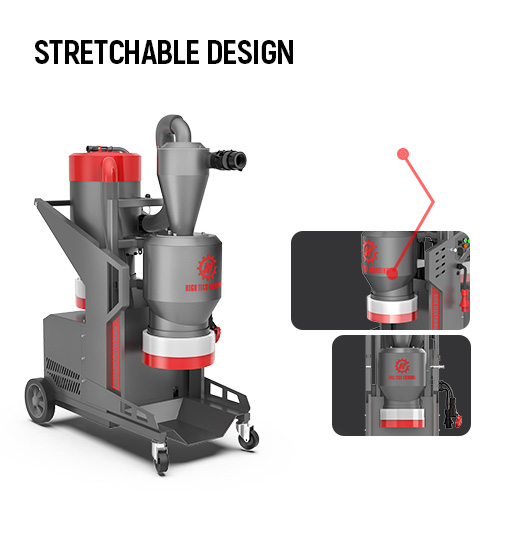

Liftable Barrel Design
Liftable barrel design saves storage space and enhances mobility for easy transport.
-
feature overview (8)
5.5kW Motor / 600m³/h Airflow / 35kPa Suction
Two-Stage Filtration: Cyclone + 2.8m² HEPA H13
Automatic Pulse Cleaning for Continuous Operation
Liftable Barrel Design with 30cm Lifting Space
Integrated Central Control Panel
Continuous Dust Bag for Fast, Dust-Free Bagging
1250×711×1930mm / 223.5kg
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG-45L |
| HTG-45L Dust Extractor | |
| ENGINE / MOTOR | |
| Motor Power | 5.5 kW |
| Power source | Corded |
| Rated input power | 5.5 kW |
| Rated voltage | 380V / 220V (3P) |
| Rated current | 13.3A (380V) / 25A (220V) |
| Frequency | 50/60Hz |
| EQUIPMENT | |
| Maximum suction | 35 kPa |
| Air Flow Rate | 600 m³/h (353 CFM) |
| Filtration size | 2.8 m² |
| Filter level | HEPA H13 |
| Filtration system | Cyclone Separation + HEPA H13 (Two-Stage) |
| Filter cleaning | Automatic Pulse Cleaning |
| Vacuum hose | 50mm (63/80mm options available) |
| Dust collection | Continuous Dust Bag |
| DIMENSIONS | |
| Size (L*W*H) | 1250*711*1930mm |
| Downsize (L*W*H) | 1250*711*1630mm |
| Packing size (L*W*H) | 1180*770*1810mm |
| Weight | 223.5 kg |
