Planetary Grinder

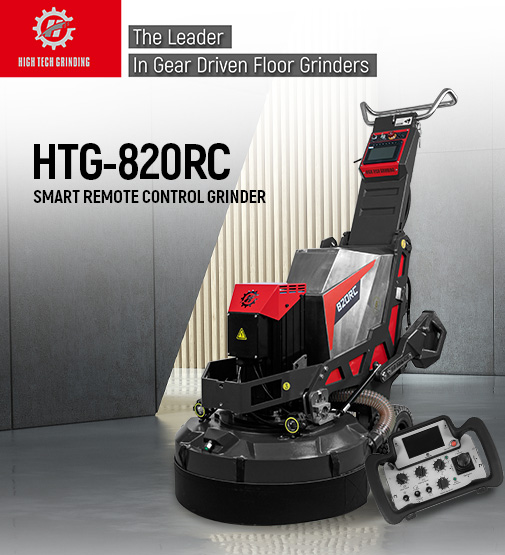

HTG-820RC Planetary Grinder
The HTG-820RC is a remote-controlled planetary floor grinder designed for industrial applications. Powered by an 18.5kW motor, it features an 820mm grinding width and 4-disc planetary system. Remote control operation reduces operator fatigue and increases efficiency on large-scale floor preparation and polishing projects.
18.5kW Motor / 25 HP
820mm Grinding Width
4-Disc Planetary Grinding System
Remote Control Operation
350-1950rpm Variable Speed
620kg Machine Weight
Flexible Turning System
HMI System for Precise Control
product description
The HTG-820RC is a remote-controlled planetary floor grinder designed for industrial applications. Powered by an 18.5kW motor, it features an 820mm grinding width and 4-disc planetary system. Remote control operation reduces operator fatigue and increases efficiency on large-scale floor preparation and polishing projects. The machine features an HMI system for precise control, flexible turning, and variable speed from 350-1950rpm. The 620kg machine weight ensures stability during operation, while the remote control system allows operators to manage hoses and cables while still grinding, significantly improving productivity.
FEATURES
Discover all features and learn more about the benefits.
-

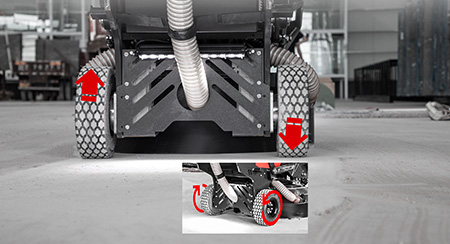

HMI System & Flexible Turning
HMI system enables precise control and real-time monitoring. Flexible turning for tight spaces and complex jobsites.
-
-

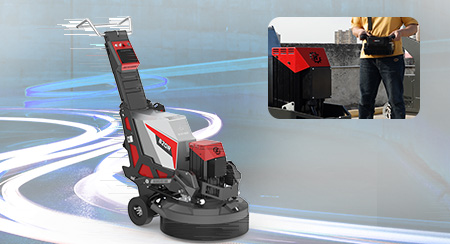

Remote-Controlled Operation
Remote-controlled operation allows managing hoses and cables while grinding, boosting productivity and reducing fatigue.
-
-

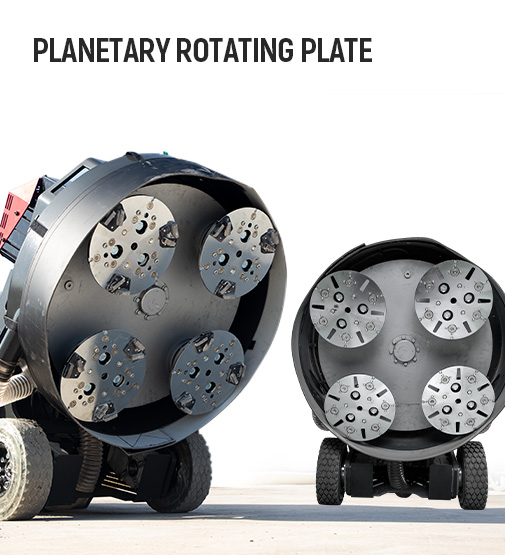

4-Disc Planetary Grinding System
4-disc planetary system with 820mm width delivers efficient grinding for industrial floor prep, repair, and polishing.
-
feature overview (9)
18.5kW Motor / 25 HP
820mm Grinding Width
4-Disc Planetary Grinding System
Remote Control Operation
350-1950rpm Variable Speed
HMI System for Precise Control
Flexible Turning System
620kg Machine Weight
Ideal for Industrial Floor Prep & Polishing
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG-820RC |
| HTG-820RC Remote Planetary Grinder | |
| MOTOR | |
| Motor Power (As rated by the engine manufacturer) | 18.5 KW / 25 HP |
| Power source | Corded |
| Rated input power | 18.5 KW / 25 HP |
| Phases | 3 ph |
| Voltage | 220V / 380V |
| Frequency | 50/60Hz |
| EQUIPMENT | |
| Grinding width | 820 mm |
| Number of grinding discs | 4 |
| Direction of rotation | Planetary Floor Grinder |
| Grinding disc diameter | 278 mm |
| Grinding disc speed min | 350 rpm |
| Grinding disc speed max | 1950 rpm |
| Water tank | 25 L |
| TRANSMISSION | |
| Type of operation | Remote Control / Walk-Behind |
| DIMENSIONS | |
| Product size (L*W*H) | 160*87*130 cm |
| Weight (complete product w/o side packed articles) | 620 kg |
