product description

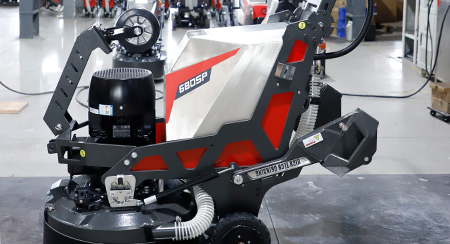

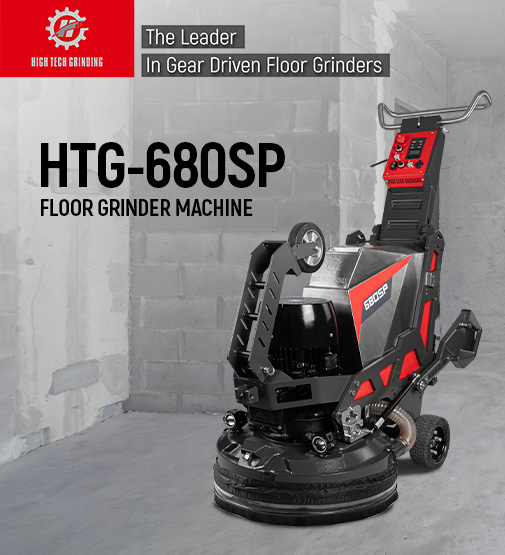

The HTG-680SP is a self-propelled planetary floor grinder designed for concrete floor grinding, leveling, epoxy pre-grinding, curing floor construction, and marble terrazzo grinding and polishing. Powered by an 11kW motor, it features a 678mm working width and 4-disc planetary system with a variable speed range of 350-1900rpm. The self-propelled operation and semi-automatic design make transport and ramp grinding easy. Full gear-driven construction ensures reliability and durability. Built for demanding jobs, the HTG-680SP delivers consistent performance for concrete floor renovation, epoxy removal, and surface preparation.
FEATURES
Discover all features and learn more about the benefits.
-
Reliable Full Gear Drive
Full gear driven system delivers consistent power and performance for demanding grinding jobs, reducing maintenance needs.
-
-

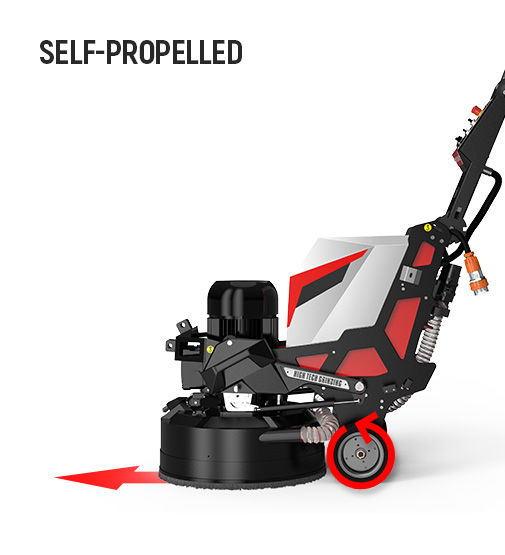

Self-Propelled & Semi-Automatic Operation
Self-propelled operation eliminates manual pushing, reducing fatigue and boosting productivity.
-
-
Consistent Grinding Speed
Consistent grinding speed ensures uniform surface finish and efficient material removal across the entire floor.
-
feature overview (10)
11kW Motor / 15 HP
678mm Working Width

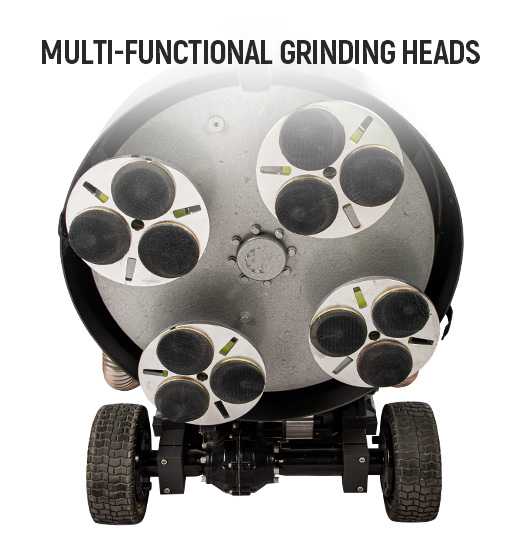

4-Disc Planetary Grinding System
Self-Propelled Operation

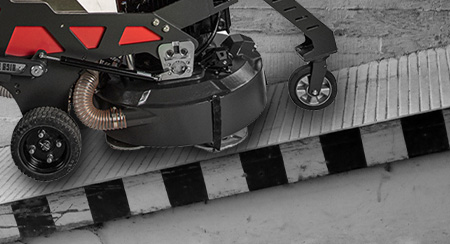

Semi-Automatic – Easy Transport & Ramp Grinding
Full Gear Driven System
350-1900rpm Variable Speed
20L Water Tank
528.5kg Machine Weight
Built for Demanding Jobs
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG-680SP |
| HTG-680SP Self-Propelled Floor Grinder | |
| MOTOR | |
| Motor Power (As rated by the engine manufacturer) | 11 kW / 15 HP |
| Power source | Corded |
| Rated input power | 11 kW / 15 HP |
| Phases | 3 ph |
| Voltage | 220V / 380V |
| Frequency | 50/60Hz |
| EQUIPMENT | |
| Working width | 678 mm |
| Number of grinding discs | 4 |
| Direction of rotation | Planetary Floor Grinder |
| Grinding disc diameter | Φ230 mm |
| Working speed min | 350 rpm |
| Working speed max | 1900 rpm |
| Water tank | 20 L |
| TRANSMISSION | |
| Type of operation | Self-Propelled |
| DIMENSIONS | |
| Appearance size (L*W*H) | 2042*700*1137 mm |
| Weight (complete product w/o side packed articles) | 528.5 kg |
