product description

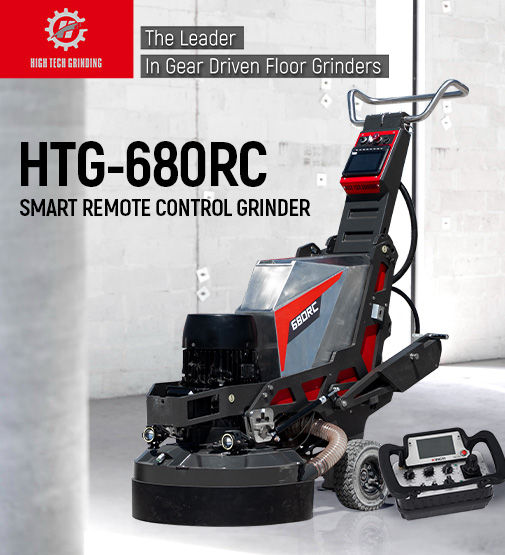

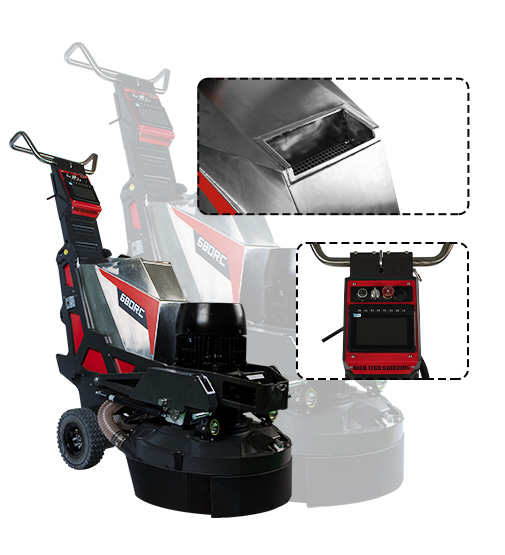

The HTG-680RC is a powerful remote-controlled planetary floor grinder developed for high-performance floor grinding and surface preparation applications. It is powered by an 11kW motor, combined with a remote control system and intelligent HMI diagnostic technology, delivering precise control, strong grinding force, and up to 40% higher productivity. The compact 680mm design allows the machine to pass through standard doorways, making it versatile for medium to large jobs. The machine adopts a heavy-duty planetary gearbox with 4-disc grinding system, flexible turning, oscillating grinding, and mist spray water system. With a 680mm grinding width, patent gearbox with MAGcleaning™ system, and 620kg machine weight, the HTG-680RC provides strong grinding force, smooth operation, and excellent maneuverability for industrial and commercial floor preparation, grinding, and polishing.
FEATURES
Discover all features and learn more about the benefits.
-

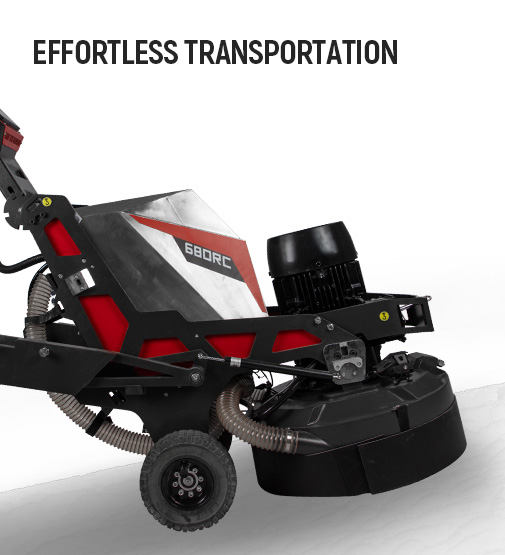

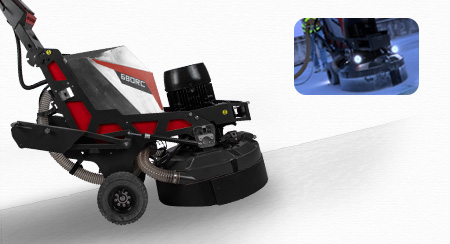

Effortless Transportation System
Built-in battery and compact design enable easy jobsite transport, reducing setup time and improving workflow efficiency.
-
-

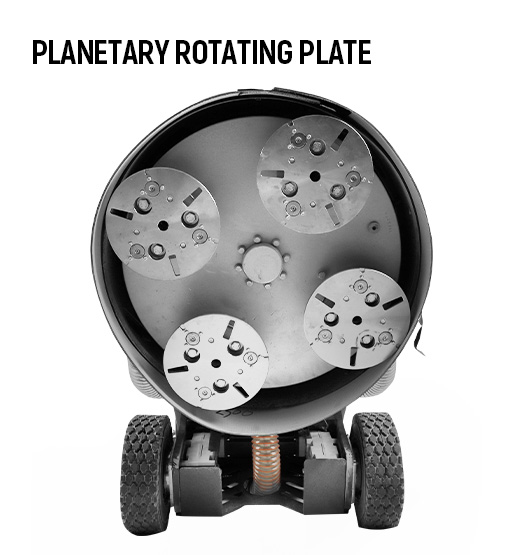

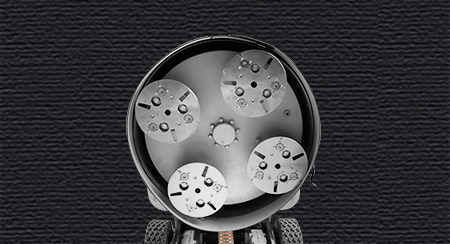

Planetary Rotating Plate System
Planetary rotating plate evenly distributes cutting force, improving grinding uniformity and surface finish quality.
-
-

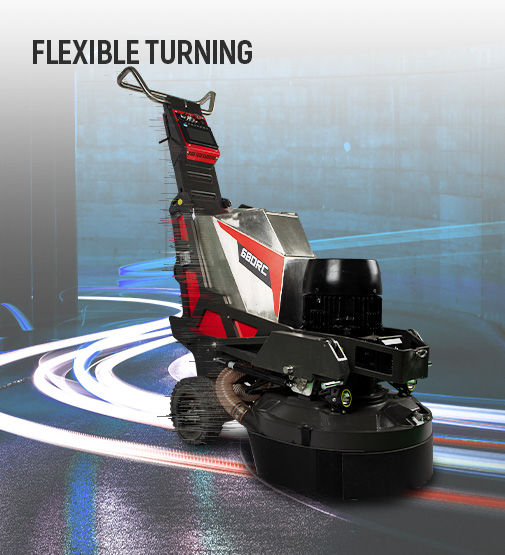

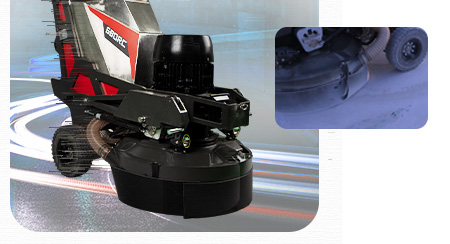

Flexible Turning System
Variable turning radius reduces mis-operation and improves operational performance through intelligent algorithm control.
-
feature overview (11)
11kW Motor / 15 HP
680mm Compact Size – Passes Through Standard Doors
4-Disc Planetary Grinding System

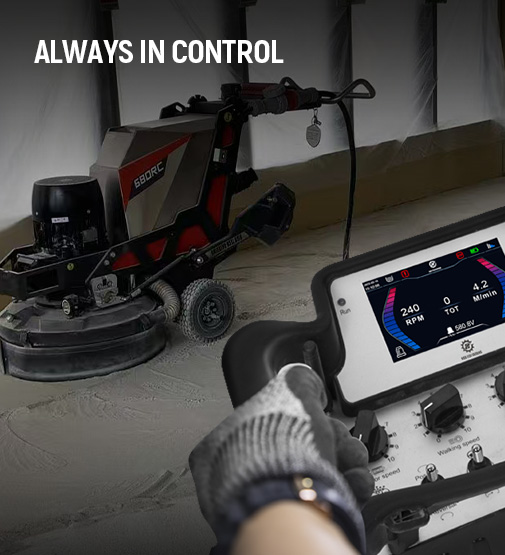

Remote Control Operation
Up to 40% Higher Productivity
HMI System for Precise Control
Flexible Turning System
Oscillating Grinding System
Mist Spray Water System
Patent Gearbox with MAGcleaning™ System
620kg Machine Weight
20L Water Tank
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG-680RC |
| HTG-680RC Remote Planetary Grinder | |
| MOTOR | |
| Motor Power (As rated by the engine manufacturer) | 11 kW / 15 HP |
| Power source | Corded |
| Rated input power | 11 kW / 15 HP |
| Phases | 3 ph |
| Voltage | 220V / 380V |
| Frequency | 50/60Hz |
| EQUIPMENT | |
| Working width | 680 mm |
| Number of grinding discs | 4 |
| Direction of rotation | Planetary Floor Grinder |
| Grinding disc diameter | Φ230 mm |
| Working speed min | 350 rpm |
| Working speed max | 1900 rpm |
| Water tank | 20 L |
| TRANSMISSION | |
| Type of operation | Remote Control |
| DIMENSIONS | |
| Packing size (L*W*H) | 160*87*130 cm |
| Weight (complete product w/o side packed articles) | 620 kg |
